Used Movable Hydraulic Lifting Platform 8m-16m Portable Scissor Lift Platform 3.3 KW

  • 1
  • 2

Brand Name : deyikexin

Model Number : 8m-16m

Place of Origin : China

MOQ : 1

Price : US $ 1799~3699 set

Payment Terms : T/T

Supply Ability : 500 set for 1 month

Delivery Time : within 35 days

Packaging Details : Container

Product name : Used Movable Hydraulic Lifting Platform 8m - 16m Portable Scissor Lift

Colour : Red

Single package size : 1000X2000X1000 cm

Single gross weight : 68 KG

Contact Now

Used Movable Hydraulic Lifting Platform 8m - 16m Portable Scissor Lift


Characteristics:

1. The mobile scissor lift is specially designed for the vertical transportation of goods between floors of buildings and is a special type of hydraulic lifting equipment.
2. The mobile scissor lift is equipped with dual safety protection: the hydraulic system integrates anti-fall and overload protection devices.
3. Different functional modules can be flexibly selected and configured according to the specific installation environment and usage requirements to optimize the usage effect.

Application:

1. The mobile scissor lifts are used in construction projects, such as window installation and exterior wall construction.
2. The mobile scissor lift is used for maintenance and inspection.
3. The mobile scissor lifts are used in logistics and warehousing.

Advantage:

1. The mobile scissor lift can be quickly transferred and operated in various scenarios and can be flexibly applied to various usage scenarios.
2. The mobile scissor lift is easy to operate, and operators can be on duty after a brief training.
3. The mobile scissor lift can be equipped with different functional modules according to different needs and is suitable for various scenarios.

Specification:

Power3.3 KWTable Size2270X1120 mm
Weight2520 kgS.W.L On Extension113 kg
Max. Occupants2Platform Extension Size900 mm
Ground Clearance(Stowed)100 mmGround Clearance(Raised)19 mm
Wheelbase1895 mmSafe working load320 Kg
Travel Speed(Raised)0.6 Km/hTravel Speed(Stowed)3.0 km/h


Parameters of other models of portable scissor lifts:

Table Size
Load capacityMax. Working HeightPlatform Extension SizeDimension
1670X758 mm230 Kg7.8 m900 mm1860*768*1860 mm
2270X830mm380Kg8 m2470*820*1860 mm
2270X830 mm
230 Kg
10 m2470-820*1980 mm
2270X1120 mm450 Kg8 m2480*1210*1670 mm
2270X1120 mm450 Kg10 m2480*1210*1800 mm
2270X1120 mm320 Kg12 m2480*1210*1935 mm
2270*1120 mm320 Kg13.8 m2480*1210*2060 mm
2640X1130 mm230 kg15.7 m2480*1280*2060 mm


We have a large number of Construction Elevator for sale to meet your every need.

Picture Show:

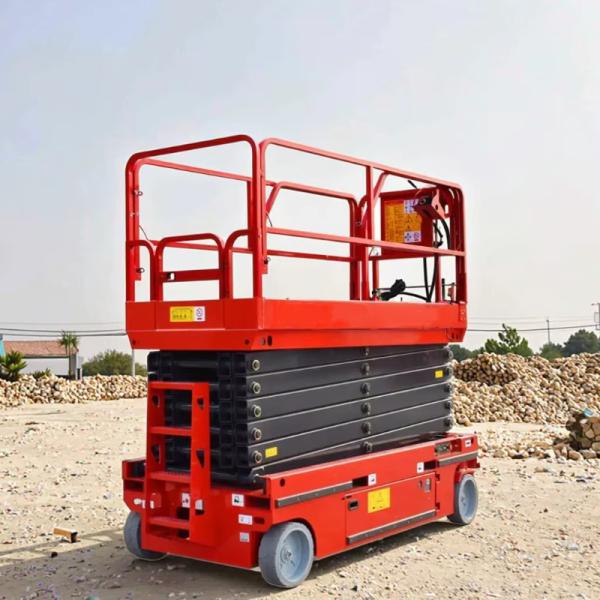

Used Movable Hydraulic Lifting Platform 8m-16m Portable Scissor Lift Platform 3.3 KW
Used Movable Hydraulic Lifting Platform 8m-16m Portable Scissor Lift Platform 3.3 KW
Used Movable Hydraulic Lifting Platform 8m-16m Portable Scissor Lift Platform 3.3 KW
